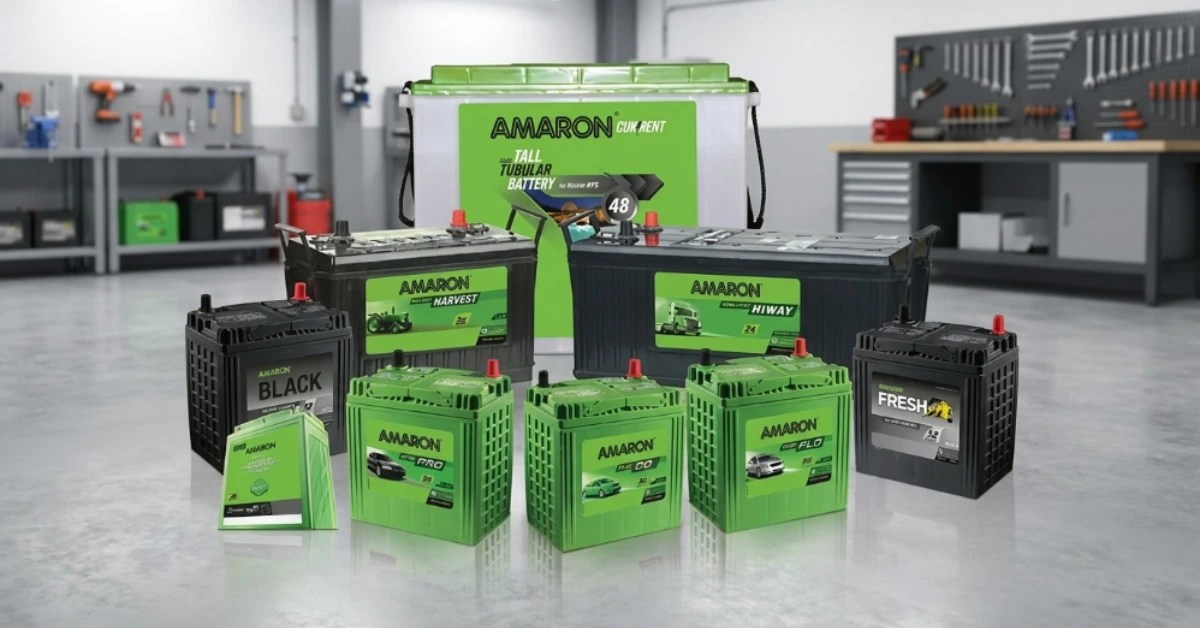

Amaron Battery Sizes Explained (55B24LS, 80D26L & More) | Dubai Driver’s Complete Guide
Amaron battery sizes in Dubai follow the JIS (Japanese Industrial Standard) coding system. This system encodes the battery’s performance rank, physical dimensions, length, and terminal position into one short label printed on every unit. The 8 most common Amaron battery sizes include the 55B24LS, 80D26L, 85D23L, 95D31R, 105D31L, and 110D26L. Each code tells you whether the battery fits your car before you ever open the bonnet.
Understanding these codes matters more in Dubai than in most cities. Temperatures here regularly exceed 45°C in summer, and underbonnet heat can climb above 80°C. A battery installed in the wrong size or wrong terminal position degrades faster, strains electrical cables, and fails at the worst possible time.
At Battery Zone UAE, we supply genuine Amaron batteries in Dubai, from Deira to Al Quoz, Jumeirah to Investment Park, with same-day mobile installation, free battery testing, and up to 24-month warranty cover.
What Do Amaron Battery Size Codes Actually Mean?
To choose the right Amaron battery size, you first need to read the JIS code on the label. The JIS system is defined under JIS D 5301:2019, the Japanese Industrial Standard for lead-acid starter batteries published by the Japanese Standards Association. Every Amaron JIS battery follows this same structure.
Take 55B24LS as an example. The code breaks into 5 parts:
Code Segment | What It Means | 55B24LS Value |
First 2 digits (55) | Performance rank combining CCA (cold cranking amps) and reserve capacity. A higher number means stronger performance. | 55 = mid-range performance |
Letter (B) | Battery case width and height category | B = 129mm wide, 203mm tall |
Next 2 digits (24) | Battery length in centimetres | 24 = approximately 238mm long |
L or R | Terminal polarity. L means the negative terminal is on the left when you face the battery front. | L = left negative terminal |
S suffix | Short case variant with reduced height | S = slim or short case |
Why this matters: Fitting a battery with the wrong terminal polarity forces cables to stretch or bend. This creates tension on the connectors, loosens the terminal clamps over time, and speeds up corrosion. In extreme heat, a wrong-fit battery degrades 30 to 40 percent faster than a correctly fitted one.
The 8 Most Important Amaron Battery Sizes in Dubai
1. Amaron 55B24LS — 45Ah | The Most Popular Sedan Size
The Amaron 55B24LS is the most requested Amaron battery size at Battery Zone UAE. It fits compact and mid-size Japanese sedans that make up the majority of vehicles on Dubai roads, including the Toyota Corolla, Honda Civic, and Nissan Sunny.
Key specs:
- Voltage: 12V
- Capacity: 45Ah
- Type: JIS (Japanese Industrial Standard)
- Terminal: Left negative (L)
- Case: Short variant (S)
- Technology: Maintenance-free, sealed
Best fits: Toyota Corolla (all generations), Honda Civic (FD/FB/FC), Nissan Sunny, Mitsubishi Lancer, Toyota Yaris.
Dubai performance note: The 55B24LS handles stop-start city driving well. Its sealed, zero-maintenance design prevents acid stratification, which is a condition where the battery’s electrolyte separates and loses capacity. This is a common failure in vehicles doing short daily trips on routes like Al Khail Road and Emirates Road, where the battery rarely completes a full recharge cycle before the engine is switched off again.
2. Amaron 80D26L — 60Ah | The Mid-Size SUV Workhorse
The Amaron 80D26L delivers 60Ah capacity inside a D26-class case. It is the standard fitment for mid-size sedans and entry-level SUVs across the UAE market.
Key specs:
- Voltage: 12V
- Capacity: 60Ah
- Type: JIS
- Terminal: Left negative (L)
- Performance rank: 80, which means strong starting power for larger engines
Best fits: Toyota Camry (XV40/XV50), Honda Accord (7th to 9th generation), Nissan Altima, Mazda 6, Mitsubishi Galant.
Dubai performance note: The 80D26L’s 60Ah reserve capacity handles the heavy electrical load that driving creates. Every time you idle at a traffic light in Al Rigga or Dubai Marina, your AC compressor draws current directly from the battery. A lower-capacity battery sags under this load, which damages electronics and shortens starter motor life over time. The 80D26L provides the reserve needed to keep voltage stable throughout those idle periods.
3. Amaron 85D23L — 60Ah | Toyota Camry and Nissan Patrol Alternative
The Amaron 85D23L carries the same 60Ah capacity as the 80D26L but uses a D23-class case. The D23 case is shorter in length and fits older Toyota and Nissan engine bay layouts, where the D26 case does not seat correctly.
Key specs:
- Voltage: 12V
- Capacity: 60Ah
- Type: JIS
- Performance rank: 85, which is higher than the 80D26L for the same capacity class
Best fits: Toyota Camry (XV20/XV30), Nissan Patrol (Y60/Y61), Toyota Cressida, Lexus ES300.
The higher performance rank of 85 versus 80 reflects stronger cold cranking amps within the same capacity, making the 85D23L the better choice if your vehicle’s original specification calls for it.
4. Amaron 75D23L — 55Ah | The Reliable Mid-Range Choice
The Amaron 75D23L sits between the 55B24LS and the 85D23L in power output. It covers a wide range of Toyota and Nissan models and offers a practical balance between capacity and price for everyday commuters.
Key specs:
- Voltage: 12V
- Capacity: 55Ah
- Type: JIS
- Performance rank: 75
Best fits: Toyota Camry (XV40), Toyota Corolla (selected variants), Nissan Bluebird, Nissan Primera.
5. Amaron 95D31R — 80Ah | Nissan Patrol and Large SUV Specialist
The Amaron 95D31R is built for largest and most power-hungry vehicles. The Nissan Patrol Y62 V8, Toyota Land Cruiser GXR, and similar heavy-duty SUVs demand a battery with the physical size and electrical capacity to match their systems. The 95D31R delivers 80Ah in a D31 case with right-terminal polarity.
Key specs:
- Voltage: 12V
- Capacity: 80Ah
- Type: JIS
- Terminal: Right negative (R)
- Performance rank: 95, built for V8 and high-load electrical systems
Best fits: Nissan Patrol (Y62 V8), Mitsubishi Pajero (V6/V8), Nissan Pathfinder (R51), Toyota 4Runner.
Dubai performance note: The Nissan Patrol’s electrical system includes a V8 engine, dual-zone climate control, seat heating, a powered tailgate, and multiple safety electronics. During summers, underbonnet temperatures can exceed 80°C. At those temperatures, standard battery casings soften, and electrolyte loss accelerates. The 95D31R uses Amaron’s High Heat Tolerance Material (HHTM) casing, which resists deformation and keeps the internal plates stable even at sustained high temperatures.
6. Amaron 105D31L — 80Ah | Toyota Land Cruiser and Prado Recommended Fitment
The Amaron 105D31L is the recommended battery for the Toyota Land Cruiser 200 series, Land Cruiser Prado 150, and similar 4WD vehicles used across Dubai, Abu Dhabi, and the surrounding desert terrain.
Key specs:
- Voltage: 12V
- Capacity: 80Ah
- Type: JIS
- Terminal: Left negative (L)
- Performance rank: 105, one of the highest in the JIS range
Best fits: Toyota Land Cruiser 200/300, Toyota Prado 150, Lexus GX460, Lexus LX570.
Dubai performance note: Land Cruiser owners who use desert tracks near Hatta, Al Qudra, or Al Ain road expose their batteries to intense vibration. The 105D31L’s internal plate construction is reinforced to absorb shock without loosening the active material from the plate grids. Active material shedding caused by vibration is one of the leading causes of early battery failure in 4WD vehicles, and the 105D31L is designed to prevent it.
7. Amaron 110D26L — 80Ah | High-Capacity D26 Class
The Amaron 110D26L is the high-capacity version of the 80D26L. It fits the same D26-class battery tray but steps up from 60Ah to 80Ah. This makes it suitable for larger sedans and crossovers that share the D26 case fitment but carry heavier electrical loads.
Key specs:
- Voltage: 12V
- Capacity: 80Ah
- Type: JIS
- Performance rank: 110
Best fits: Toyota Camry (XV70 with hybrid support), Honda Accord (10th generation), Nissan Murano (Z51), Infiniti Q50.
8. Amaron 46B24LS — 38Ah | Honda and Compact Car Entry
The Amaron 46B24LS is the lighter-duty version of the 55B24LS, rated at 38Ah. It fits compact vehicles where the battery bay is sized for the B24 short case but does not require the higher 45Ah capacity.
Key specs:
- Voltage: 12V
- Capacity: 38Ah
- Type: JIS
- Terminal: Left negative (L), short case (S)
Best fits: Honda Civic (older FD series), Honda Jazz/Fit, Nissan March, Nissan Note.
The Complete Amaron JIS Battery Size Comparison Table
Model | Capacity | Case Class | Terminal | Typical Fitment in Dubai |
46B24LS | 38Ah | B (slim) | Left | Honda Jazz, Nissan March |
55B24LS | 45Ah | B (slim) | Left | Toyota Corolla, Honda Civic |
75D23L | 55Ah | D23 | Left | Toyota Camry (XV40), Nissan Primera |
80D26L | 60Ah | D26 | Left | Toyota Camry, Honda Accord |
85D23L | 60Ah | D23 | Left | Toyota Camry, Nissan Patrol (Y60) |
95D31R | 80Ah | D31 | Right | Nissan Patrol V8, Mitsubishi Pajero |
105D31L | 80Ah | D31 | Left | Toyota Land Cruiser, Lexus LX |
110D26L | 80Ah | D26 | Left | Honda Accord (10th gen), Infiniti Q50 |
125D31L | 95Ah | D31 | Left | Commercial vehicles, heavy-duty SUVs |
Why Amaron Outperforms Other Battery Brands in Dubai's Climate?
Driving environment creates 4 specific conditions that shorten battery life faster than in most other cities:
- Extreme summer heat above 45°C ambient temperature
- Underbonnet heat climbing to 80°C and above
- Short daily trips that prevent the battery from completing a full recharge cycle
- Continuous air conditioning running for 10 or more months per year
Each of these conditions stresses the battery in a different way. High heat accelerates corrosion on the internal plate grids. Short trips cause a partial state of charge, which leads to sulphation, a process where lead sulphate crystals harden on the plates and permanently reduce capacity. Constant AC load drains the battery faster than the alternator can restore it during brief urban journeys.
Research from Battery Energy found that battery State of Health (SOH) dropped to just 10 percent after 130 discharge cycles at 40°C. At 25°C, the same battery retained 28 percent SOH after the same number of cycles. In Dubai, where temperatures exceed 40°C for extended periods, the thermal management built into a battery’s design becomes the primary factor in how long it survives.
Amaron addresses all 4 challenges with 5 proprietary technologies:
- SilvenX Alloy Grid Technology reduces internal corrosion under extreme heat. It extends plate life and keeps capacity stable across many charge cycles.
- High Heat Tolerance Material (HHTM) casing resists warping, cracking, and acid leakage at underbonnet temperatures that soften or deform standard polypropylene casings.
- BIC (Built-In Compensation) vent system releases internal pressure safely during high-temperature charging cycles without losing electrolyte.
- Low self-discharge design retains charge during long parking periods. This matters for residents who leave vehicles stationary for days during travel or long weekends.
- Vibration-resistance construction protects internal plates from shock caused by speed bumps, uneven parking surfaces, and desert off-road terrain.
Independent performance data from service centres shows Amaron batteries achieve 2.5 to 4 years of service life in UAE conditions. Standard batteries without heat-specific engineering typically fail within 12 to 18 months under the same conditions.
How Dubai's Seasonal Pattern Affects Amaron Battery Life?
March to May (Pre-Summer): Battery stress starts climbing as temperatures rise. This period is the best time to test your battery, because a battery showing weakness in March will very likely fail in July.
June to September (Peak Summer): Underbonnet temperatures regularly exceed 70 to 80°C during this period. Batteries with standard casings and separators fail rapidly in this window. Amaron’s HHTM technology keeps the casing structurally intact and prevents the internal plate stack from distorting under sustained heat.
October to February (Mild Winter): Temperatures drop to 18 to 25°C, which is close to a lead-acid battery’s optimal operating range. Batteries perform at their best during this period, and batteries installed in these months tend to last longer because they begin their life under lower thermal stress.
Battery Zone UAE recommendation: Test your Amaron battery every 12 months. Replace it at the 3-year mark if you drive daily or depend on heavy electrical accessories such as dash cams, parking sensors, or rear entertainment systems.
Amaron Battery Sizes: L vs R Terminal Position Explained
One of the most common fitment mistakes in garages is installing an L-terminal battery in an R-terminal vehicle, or the other way around. When this happens, the battery cables do not reach their posts at the correct angle. This forces the mechanic to stretch or reroute the cables, which creates loose connections and accelerates corrosion at the terminal clamps.
L (Left) terminal: The negative (black) terminal sits on the left when you face the battery from its front. The positive (red) terminal sits on the right. Common L-terminal models include the 55B24LS, 80D26L, 105D31L, and 110D26L.
R (Right) terminal: The negative terminal sits on the right, and the positive sits on the left. Common R-terminal models include the 95D31R and 55B24RS.
The S suffix (as in 55B24LS versus 55B24L) indicates a shorter case height. The electrical performance is the same, but the physical height is reduced. Do not substitute a non-S battery into an S-spec vehicle without checking that the taller case fits under the bonnet. A case that is too tall can contact the bonnet latch or adjacent components.
The terminal position specification is defined in JIS D 5301:2019, published by the Japanese Standards Association (JSA), which governs all JIS lead-acid starter batteries, including the Amaron JIS range.
How to Choose the Right Amaron Battery Size for Your Car?
To select the correct Amaron battery size, follow these 4 steps:
- Check your current battery label. The JIS code, for example, 55B24LS, is printed on the top or side label. Match this code exactly when buying a replacement.
- Verify terminal polarity. Look at which terminal (positive or negative) is on the left side when you face the battery from the front. This tells you whether you need an L or R fitment.
- Confirm case dimensions. Measure length, width, and height if you are considering an upgrade to a higher-capacity model. Upgrading from an 80D26L to a 110D26L uses the same D26 case, so it fits the same battery tray directly.
- Match or exceed the performance rank. The first 2 digits, such as 46, 55, 75, or 80, represent the combined CCA and capacity ranking. Always match or go higher when replacing. Installing a lower-ranked battery in a vehicle that needs a higher rank will result in poor starting performance and shorter battery life.
Not sure of your battery size? Contact Battery Zone UAE with your car’s make, model, year, and engine size. Our team identifies the correct Amaron battery size within minutes and delivers to your location anywhere, from Business Bay to Al Barsha, Mirdif to Jebel Ali.
Signs Your Amaron Battery Needs Replacement in Dubai
Replace your Amaron battery if you notice any of the 7 most reliable warning signs:
- Slow engine cranking. The starter motor turns sluggishly, especially on the first start of the day.
- Dashboard battery warning light. The light stays on permanently or flickers when you are idling.
- Dimming headlights at idle. This signals voltage dropping below 12.4V under electrical load.
- Air conditioning loses power when the engine is running at low RPM.
- Clicking sound when turning the ignition key. The starter motor is not receiving enough voltage to engage.
- Swollen or bulging battery case. This is a sign of internal heat damage or casing deformation.
- Battery older than 3 years. Proactive replacement before failure avoids roadside breakdowns during Dubai’s peak summer heat.
Battery Zone UAE: Dubai's Amaron Battery Specialists
Battery Zone UAE supplies 100% genuine Amaron batteries in all JIS sizes, from the 46B24LS to the 125D31L, with professional mobile installation across all Dubai districts. Every battery comes with a full manufacturer’s warranty: 12 months, 18 months, or 24 months, depending on the model, with 1 free replacement included. Terms and conditions apply.
Our service covers:
- Free battery health testing at your location
- Same-day mobile replacement anywhere
- Amaron batteries for sedans, SUVs, 4WDs, and light commercial vehicles
- Eco-responsible disposal of your old battery
- Transparent pricing with no hidden labour charges
Ready to find the correct Amaron battery type and size for your vehicle? Call Battery Zone UAE now or send a WhatsApp message with your car make, model, and year. Our battery specialists respond within minutes.
Conclusion
Choosing the correct Amaron battery size ensures proper fitment, reliable performance, and longer battery life. Understanding the JIS code system helps you match the battery to your vehicle’s electrical and physical requirements.
Extreme heat can shorten battery life, making battery selection especially important. Amaron batteries are designed for high-temperature conditions, offering dependable performance and durability. If your battery is nearing the end of its service life, Battery Zone UAE can help you find and install the right Amaron battery anywhere.
Frequently Asked Questions
What is the difference between Amaron 55B24LS and 55B24L?
The S suffix means short case, which is a reduced-height variant. The 55B24LS is physically shorter than the 55B24L and is designed for vehicles with a low battery tray or restricted underbonnet clearance. The electrical output (45Ah, 12V) is the same in both models.
Can I upgrade from an Amaron 80D26L to an Amaron 110D26L?
Yes. Both batteries use the same D26 case size, so the 110D26L fits directly into the same battery tray without any modification. The upgrade increases capacity from 60Ah to 80Ah and raises the performance rank from 80 to 110, delivering stronger cold cranking amps and better reserve capacity for vehicles with high electrical loads.
How long does an Amaron battery last in Dubai?
An Amaron battery lasts between 2.5 and 4 years, depending on driving frequency, AC usage, and whether the vehicle is garaged or parked in direct sunlight. Standard batteries without heat-resistant engineering typically fail within 12 to 18 months under the same conditions.
Does Amaron offer a warranty in Dubai?
All Amaron batteries supplied by Battery Zone UAE carry a manufacturer’s warranty of 12, 18, or 24 months, depending on the model, with 1 free replacement included. Warranty is fully claimable through Battery Zone UAE.
What Amaron battery size fits a Toyota Land Cruiser 200?
The Amaron 105D31L is the recommended fitment for the Toyota Land Cruiser 200 series. It provides 80Ah capacity, a D31 left-terminal configuration, and a performance rank of 105 that matches the Land Cruiser’s high electrical load, including 4WD systems, air conditioning, and accessory electronics.
What Amaron battery size fits a Nissan Patrol V8?
The Amaron 95D31R is the recommended size for the Nissan Patrol Y62 V8. It provides 80Ah capacity with right-terminal (R) polarity and a performance rank of 95, suited to the Patrol’s V8 engine management and full electrical system.
